Motorized 4K Lens: TL410

  • Ultra high resolution, standard focal range lens
  • 4-10mm focal range
  • True 4K, 12 megapixel resolution
  • Fully motorized with zoom, focus, iris. Some models include IR cut, and limit switches
  • IR corrected for Day/Night
  • Compact design to fit into domes as small as 4” mini-dome size
  • 1/2.3" up to 1/1.7" sensor sizes

Motor Control Board Accessory
Motor Temperature Calculator
CAD Configurator Instructional Video

<iframe width="560" height="315" src="https://www.youtube.com/embed/videoseries?si=Wxg6WO_WpMgifJ-F&amp;list=PL7gw6kMEMn1rRcOUcTBDsxCOyPj0oN-Vi" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" referrerpolicy="strict-origin-when-cross-origin" allowfullscreen></iframe>

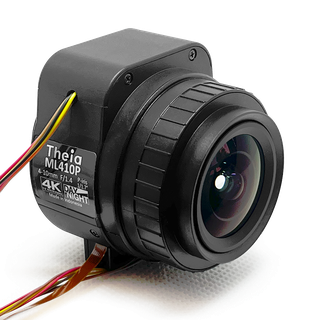

ML410P
ML410P R6
Lens Calculator Lens Selector Request a Sample Request a Quote CAD Downloads

Overview

Other versions with different feature combinations are possible; please inquire.
Additional integrated bandpass and longpass filter options may be possible; please inquire. Contact Us

TL410P R3 CS TL410P R4 CS TL410P R5 CS ML410A R6 Selected:
ML410P R6 		TL410P R6 CS TL410P R6 25 TL410A R4 CS TL410A R6 CS
Motorized Focus / Zoom ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Focus / Zoom Limit Indicator (Photo Interrupter) - - - ✓ ✓ ✓ ✓ - ✓
Iris Type P-iris P-iris P-iris DC auto iris P-iris P-iris P-iris DC autoiris DC autoiris
IR Cut Filter - ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Mount Type CS-mount CS-mount CS-mount C mount C mount CS-mount D25 Board mount CS-mount CS-mount

Theia offers a downloadable Motor Temperature Calculator that estimates the temperature of focus and zoom motors after cycles of running and cool down.

For ease of evaluation of Theia’s motorized lenses we offer a lens motor control board. This can be controlled by USB, I2C, and UART connections. You will find more information about the Motor Control Board at the link shown.

The non-motorized version of the lens is the SL410 / ML410.

Similar to Theia's other lenses, the TL410 series is a high quality lens designed to allow the installer to take full advantage of the high resolution of 4K resolution, HD, and multi megapixel cameras. The lens can be used on cameras up to 12 megapixel resolution giving a crisp image from edge to edge.

CAD Data

Accessories

Lenses


ML410A R6

4-10mm, 4k 12mpx, Day/Night, DC Auto iris, 1/1.7" format C mount lens
ML410P

Selected: ML410P R6

4-10mm, 4k 12mpx, Day/Night, P-iris, 1/1.7" format C mount lens
theia-TL410A-Transparent-1000x1000

TL410A R4 CS

4-10mm, 4k 12mpx, Day/Night, DC auto iris, 1/1.7" format, motorized zoom, focus, IR cut, CS mount lens
theia-TL410A-Transparent-1000x1000

TL410A R6 CS

4-10mm, 4k 12mpx, Day/Night, DC auto iris, 1/1.7" format, motorized zoom, focus, IR cut, PI motor stops, CS mount lens
Theia-TL410P

TL410P R3 CS

4-10mm, 4k 12mpx, Day/Night, P-iris, 1/1.7" format, motorized zoom, focus, CS mount lens
Theia-TL410P

TL410P R4 CS

4-10mm, 4k 12mpx, Day/Night, P-iris, 1/1.7" format, motorized zoom, focus, PI motor stops, CS mount lens
Theia-TL410P

TL410P R5 CS

4-10mm, 4k 12mpx, Day/Night, P-iris, 1/1.7" format, motorized zoom, focus, PI motor stops, CS mount lens
Theia-TL410P

TL410P R6 25

4-10mm, 4k 12mpx, Day/Night, P-iris, 1/1.7" format, motorized zoom, focus, IR cut, PI motor stops, D25 mount lens
Theia-TL410P

TL410P R6 CS

4-10mm, 4k 12mpx, Day/Night, P-iris, 1/1.7" format, motorized zoom, focus, IR cut, PI motor stops, CS mount lens
