Individually Calibrated Lenses

With lens-specific optical performance data to enhance image processing and improve image quality

Theia Technologies' individually calibrated lenses provide lens-specific optical performance data to enhance image processing and improve image quality. The calibrated lenses with motorized zoom and focus simplify camera setup in applications that have variable camera positions and object distances, enhancing object resolution in dynamic environments and applications such as mobile robots, ITS, ANPR and other industrial imaging applications.

<iframe width="100" height="100" src="https://www.youtube.com/embed/WJwD6Wr6OrY?si=_oPTQb3GrS2-PRUK" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" referrerpolicy="strict-origin-when-cross-origin" allowfullscreen></iframe>

<iframe width="560" height="315" src="https://www.youtube.com/embed/QtGBgm1Wm54?si=mxpA419GcPcP6xfB" title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" referrerpolicy="strict-origin-when-cross-origin" allowfullscreen></iframe>

Learn about Theia's family of average measured Calibrated lenses here. For more information on models currently available, select from the lenses below.

Request a Sample
Bandpass and Longpass Filter Options
Learn more - MCR IQ™ Motor Control Board
Learn more - Motor Temperature Calculator

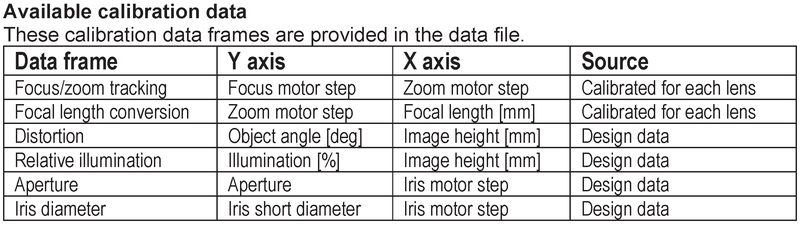

calibrated data frames

Calibrated lens back focal length (BFL) calibration procedure
Due to the tolerances in the camera sensor and mount positions, there is a difference between the lens best focus position and the calibrated focus position. To mitigate this, the lens focus position should be set visually and compared to the calibrated focus motor step from the data file at several focal lengths. The Back Focal Length (BFL) calibration procedure is described in application note AN004. Depending on the application, a fine focus adjustment may be required for optimal focus.

Application Notes Downloads
Theia Calibrated Lenses AN004 BFL Compensation
Theia Calibrated Lenses AN012 Focus Zoom Tracking
Theia Calibrated Lenses AN015 Aperture F#
Theia Calibrated Lenses AN016 Field of View
Theia Calibrated Lenses AN017 Lens Iris Shape

Related Lenses

Calibrated Motorized 4K Lens: TL1250P-CAL

Focal Length: 12-50mm, 4k 12mpx, Day/Night, 1/1.7", motorized zoom & focus, telephoto lens, with individual calibration data, and SDK with GUI

Calibrated Motorized 4K Lens: TL410P-CAL / ML410P-CAL

Ultra High Resolution, standard Focal Length lens, 4-10mm focal range, 4K (12MP) resolution, Fully motorized (Zoom, Focus, IR Cut Filter, Iris, Focus/Zoom Limit Indicators), 1/2.3" up to 1/1.7" sensor sizes, with individual calibration data, and SDK with GUI
